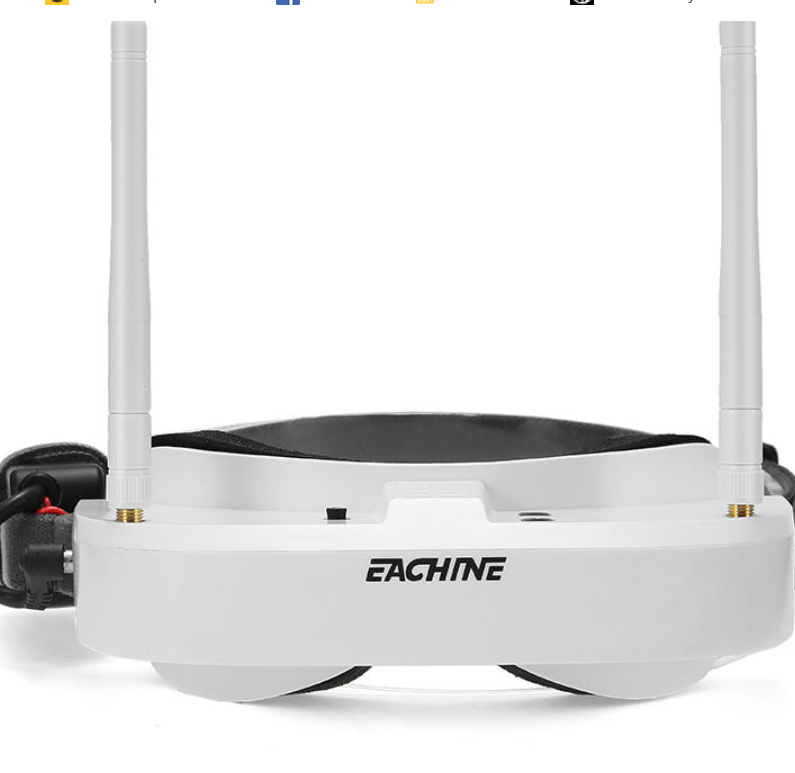

Eachine EV100 720*540 5.8G 72CH FPV Goggles With Dual Antennas Fan 7.4V 1000mAh
Description
Brand Name : Eachine
Item Name : EV100
Size : 165mm*76mm*30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g
Display
Resolution : 720*540
FOV : 28° diagonal
IPD : 58-68mm
Ratio : 4:3Focal length adjusting: under 400 degree of myopia and hyporopia 150 degree
Specification
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : <=-93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Support AV IN/OUT
Support Focal Length/Brightness/Contrast Adjustment
Suport Firmware Upgrading
Power Input : 7.4V
Low Voltage : 6.8V
Battery : 2S 7.4V 1000mAh
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃
Features
Support AV Input and Output( it doesn't support Audio in FPV mode, for the build-in receiver can't receive audio. But in AV-IN mode, the audio is available.)Support External HDMI to AV Module
Support External DVR module
Single receiver with Dual Antennas, enhance the reception and stable performance.
With Fan, can defog the glasses for good visual experience.
Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel of stongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz
Package Included
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 7.4V 1000mAh Battery
2 x RP-SMA 3dBi Antenna
1 x User Manual
